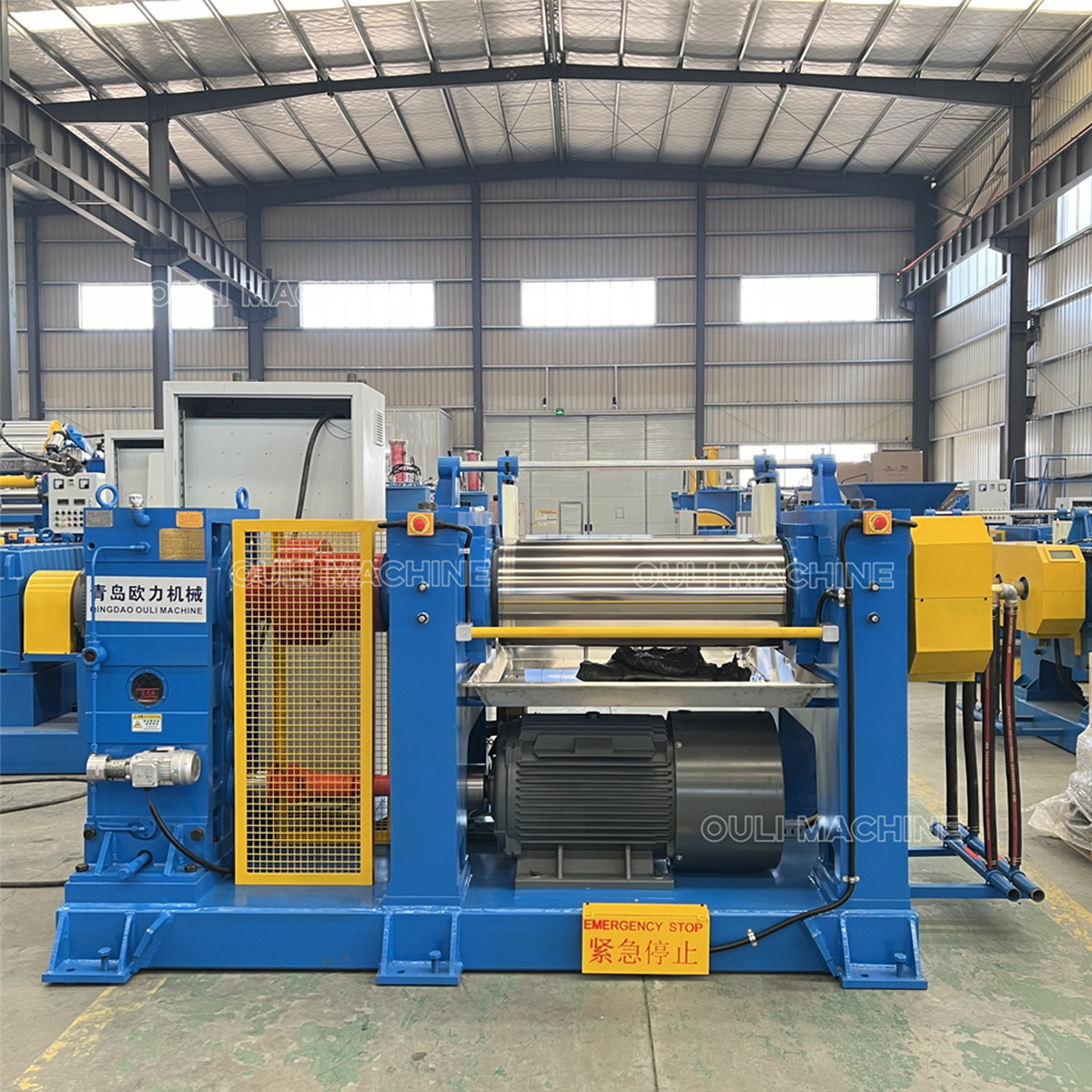

Automatic Stock Blender Type Two Roll Rubber Open Mixing Mill
Open type two roll rubber mixing mill used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or EVA with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.
Inquiry Now →

PRODUCT DESCRIPTION

This Stock Blender Open Type Two Roller Rubber Mixing Mills Designed To Provide Excellent Performance And Versatility In The Rubber And Plastic Processing Industry.

It Is Capable Of Effectively Blending Various Raw Materials To Create a Homogeneous And Uniform Mixture,Ensuring The Final Product Meets The Required Quality Standards.

The Robust Construction And Precision Engineering Of Our Mixing Mill Ensure Durability. Reliability, And Exceptional Performance. It Is Equipped With Advanced Controls And Safety Features.

To Enhance Operational Efficiency And Provide a Safe Working Environment For The Operator In Addition To Its Mixing And Kneading Capabilities, Our Rubber Mixing Mills Also Compatible With Other Processing Machines.

TECHNICAL PARAMETER

Model

X(S)K-160

X(S)K-200

X(S)K-250

X(S)K-300

X(S)K-360

X(S)K-400

X(S)K-450

X(S)K-560

X(S)K-610

X(S)K-660

Roll Size(mm)

φ160*320

φ200*400

φ250*620

φ300*750

φ360*900

φ400*1000

φ450*1200

φ560*1530

φ610*1830

φ660*2130

Front Roll Speed(m/min)

7.4

9.6

12.5

15.1

18.1

19.8

22.25

28.1

28.4

29.8

Roll Speed Ratio

1:1.35

1:1.3

1:1.25

1:1.25

1:1.25

1:1.27

1:1.27

1:1.25

1:1.18

1:1.09

Capacity(kg/batch)

4

10

15-20

25

25-35

45

70

135

180-200

250-300

Motor Power(KW)

5.5

7.5

18.5

22

30

37/45

55

110

160

250

Weight(KG)

956

2700

3500

4500

6500

8000

12000

20000

27000

43000


ADVANTAGE AND MAIN FEATURE

1.Roller: The roller is made of LTG-H chrome-molybdenum alloy cold cast iron, centrifugal casting, the surface hardness of the cold hard layer can reach 72-75HSD.

Other Optional configuration: chrome-coated roller, mirror-finished rollers, and drilled rollers as options.

2.Rolling bearing: Automatic aligning roller bearing, High carrying capacity, energy saving more than 5% than the traditional nylon bush .

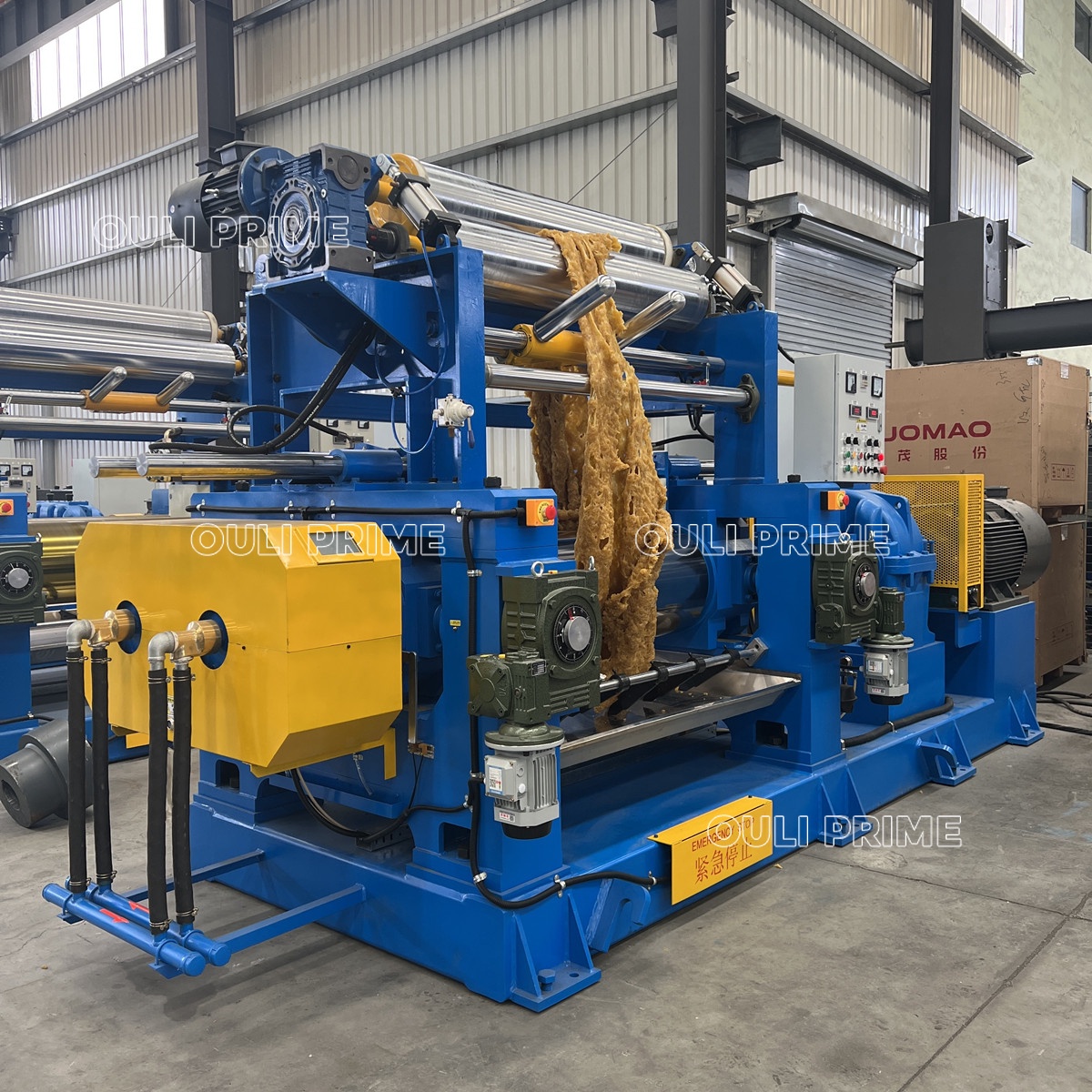

3.Stock blender :roller with chrome plating ,frequency control speed of two rollers ,Hydraulic.

4.Bearing lubrication: automatic dry oil (lithium grease) lubrication, can set the lubrication time and lubrication frequency.

5.Nip adjustment device :Standard by manual, also have automatic motor adjustment / hydraulic , which can realize single-side adjustment and two-side adjustment.

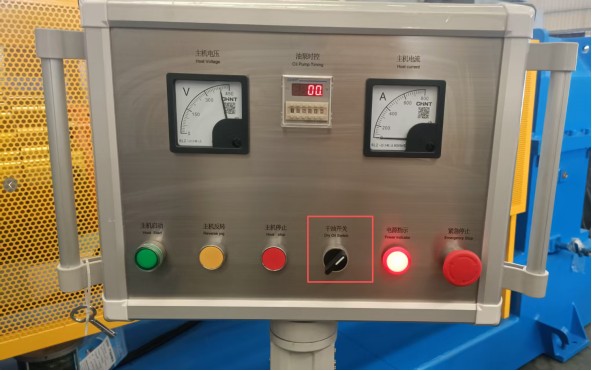

6.Safety Device: Standard with 4 emergency stop buttons on both sides of the machine, also with one on electrical control panel, kick stop device.

Other Optional configuration: chest bump emergency stop, pull-rod emergency stop, safety light curtains, etc.

7.Gear box (reducer ):Adopt top brand in china ,hard tooth surface reducer,It is a four-axis three-stage transmission,The safety factor is above 2.0.

8.The frame and base: welding and annealed, processed by precision machine. Steel thickness is 240mm.

DETAILES OF PRODUCT

We make our use  safe

Brake time:1/4 circle,

Brake power: electric-hydraulic brake,

Brake type : bar brake/chest brake/stop button/foot brake

image.png  image.png  image.png

75HSD Hardness Roll

The roller is made of LTG-H chromium-molybdenum or low nickel-chromium ally chilled cast iron, centrifugally cast, the hardness of the chilled layer on the surface of the roller can reach 75HSD and the depth of the chilled layer is 15-20mm.

Roll bearing type : Automatic-aligning ball bearing

Brand :ZWZ, (optional FAG, SKF)

Roller bearing lubrication : by grease

image  image  image.png image

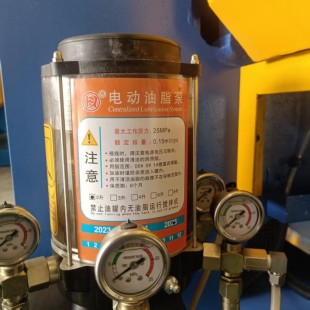

Automatic Lubrication of Bearing

image  image

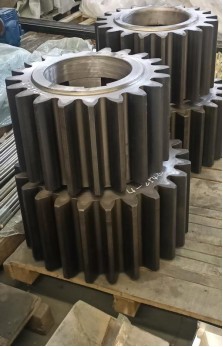

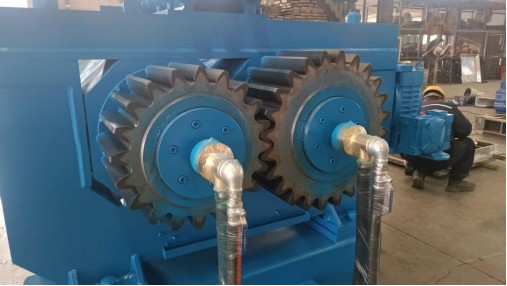

Hard Gear Reducer

image image image

WHY CHOOSE US

why choose 新

faq

Q1: Where is your factory located?

A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.

Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.

Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.

Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
