PRODUCT DESCRIPTION

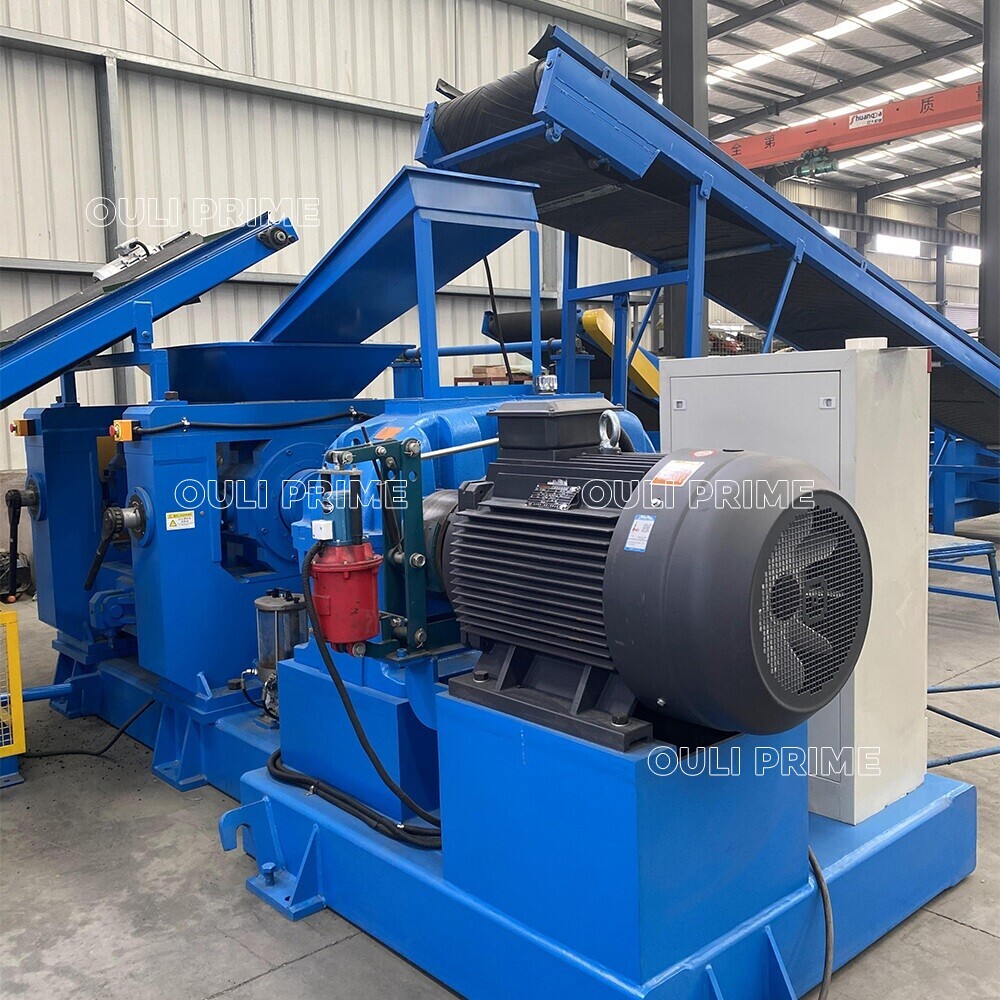

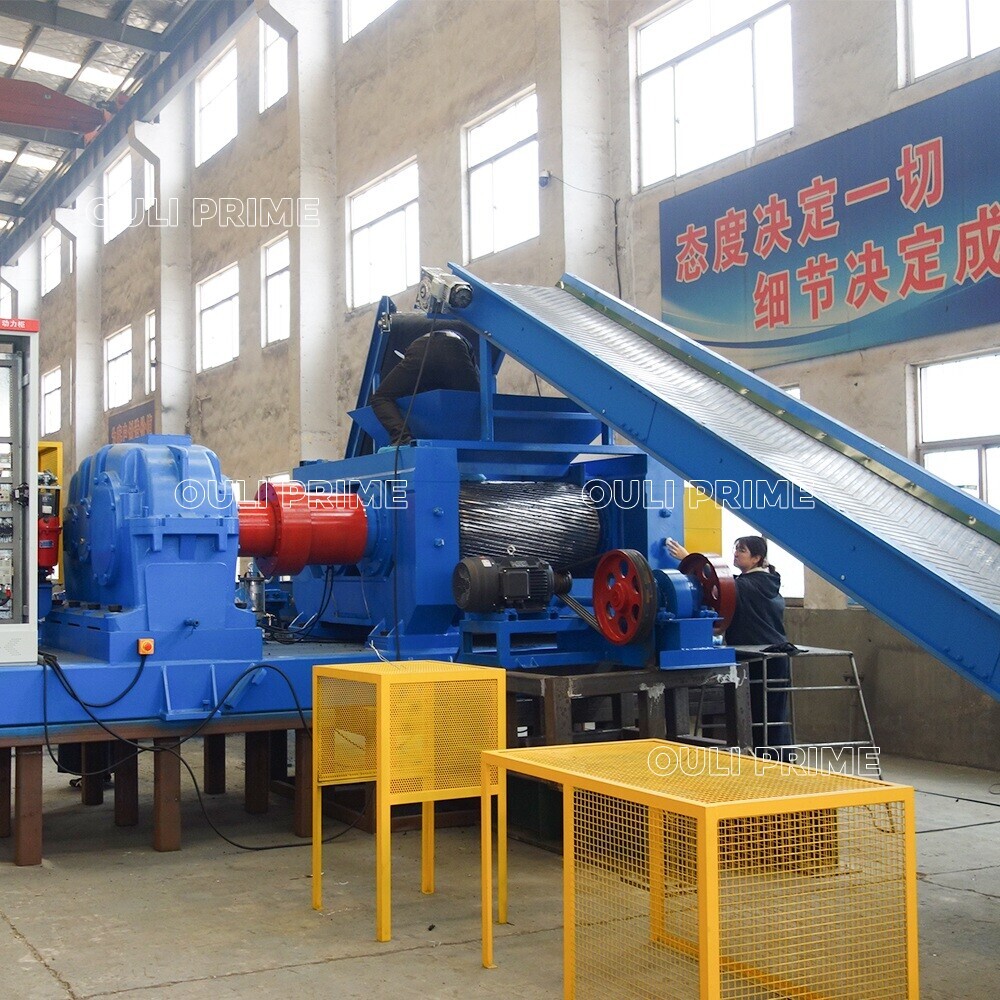

Rubber crusher/rubber cracker machine is for grindingsmall pieces into rubber powders.The final products can reach diameter:10-40 mesh
TECHNICAL PARAMETER
ADVANTAGE AND MAIN FEATURE
1.Roller: The roller is made of LTG-H chrome-molybdenum alloy cold cast iron, centrifugal casting, the surface hardness of the cold hard layer can reach 72-75HSD.
Other Optional configuration: chrome-coated roller, mirror-finished rollers, and drilled rollers as options.
2.Rolling bearing: Automatic aligning roller bearing, High carrying capacity, energy saving more than 5% than the traditional nylon bush .
3.Stock blender :roller with chrome plating ,frequency control speed of two rollers ,Hydraulic
4.Bearing lubrication: automatic dry oil (lithium grease) lubrication, can set the lubrication time and lubrication frequency.
5.Nip adjustment device :Standard by manual, also have automatic motor adjustment / hydraulic , which can realize single-side adjustment and two-side adjustment.
6.Safety Device: Standard with 4 emergency stop buttons on both sides of the machine, also with one on electrical control panel, kick stop device.
Other Optional configuration: chest bump emergency stop, pull-rod emergency stop, safety light curtains, etc.
7Gear box (reducer ):Adopt top brand in china ,hard tooth surface reducer,It is a four-axis three-stage transmission,The safety factor is above 2.0.
8.The frame and base: welding and annealed, processed by precision machine. Steel thickness is 240mm.
DETAILES OF PRODUCT

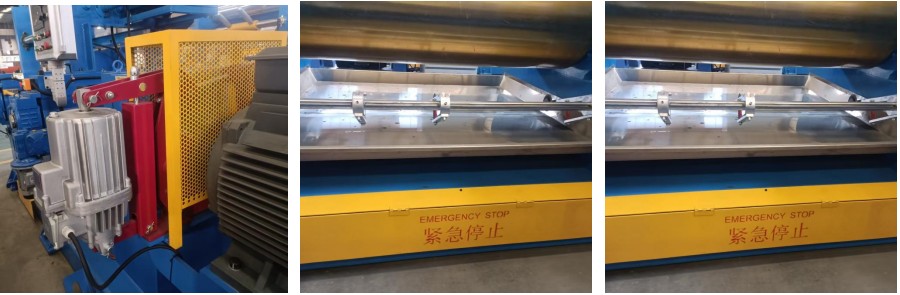

We make our use safe of Rubber Crusher
Brake time:1/4 circle,
Brake power: electric-hydraulic brake,
Brake type : bar brake/chest brake/stop button/foot brake

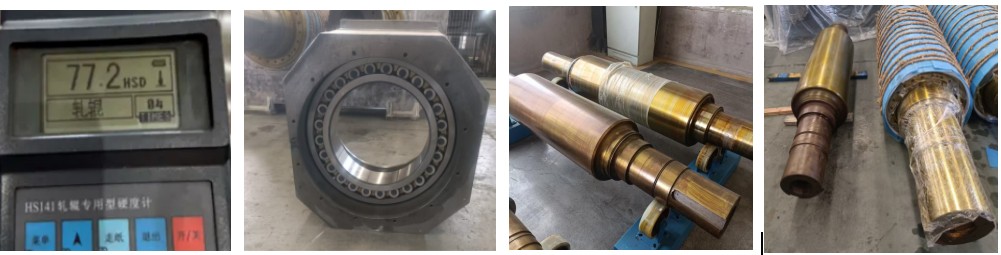

75HSD Hardness Roll of Rubber Crusher Machine
The roller is made of LTG-H chromium-molybdenum or low nickel-chromium ally chilled cast iron, centrifugally cast, the hardness of the chilled layer on the surface of the roller can reach 75HSD and the depth of the chilled layer is 15-20mm.
Roll bearing type : Automatic-aligning ball bearing
Brand :ZWZ, (optional FAG, SKF)
Roller bearing lubrication : by grease

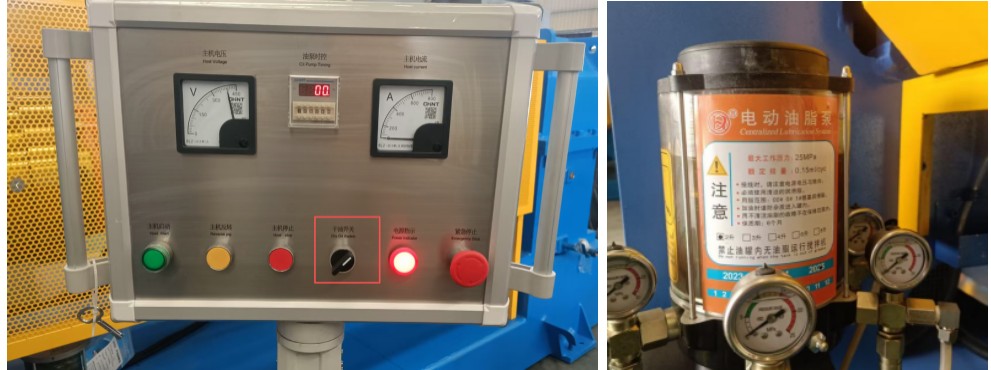

Automatic Lubrication of Bearing of Rubber Crusher Machine

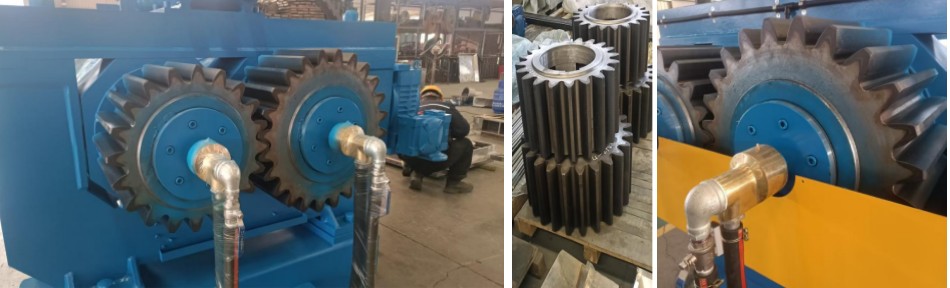

Hard Gear Reducer
WHY CHOOSE US
faq
Q1: Where is your factory located?
A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
