Pin Barrel Cold Type Rubber Extruding Machine

Pin Barrel Cold Type Rubber Extruding Machine is widely used in building curtain wall, steel windows and doors,aluminum alloy energy-saving windows and doors, wooden windows and doors, building deformation joint, industrial doors and windows

Inquiry Now →

PRODUCT DESCRIPTION

Pin barrel cold feed rubber extruding machine is widely used in building curtain wall, steel windows and doors,aluminum alloy energy-saving windows and doors, wooden windows and doors, building deformation joint, industrial doors and windows.

TECHNICAL PARAMETER

Parameter/model	XJD-75	XJD-90	XJD-120	XJD-150	XJD-200	XJD-250
Screw dia.(mm)	75	90	120	150	200	250
L/D	8-14	12-16	12-16	12-18	12-18	12-18
Screw speed(r/min)	0-60	0-60	0-60	0-60	0-60	0-60
Motor power(kw)	37-45	75-90	90~110	200-220	315~355	400~500
Capacity(kg/h)	100-180	250~350	600~800	1000-1500	1600-2500	2800-3500
Total weight(t)	2.1	3	4.2	5.5	9.8	15

ADVANTAGE AND MAIN FEATURE

1. 38 CrMoALA SCREW AND BUSH

The material is made of 38CrMoAlA high-quality nitrided steel, after quenching and tempering and surface nitriding treatment the surface hardness of the screw groove is HRC60-65, and the depth of the hard layer is 0.5-0.7mm

2. HARD GEAR REDUCER

It adopts two-stage reducer with hard-gear tooth surface cylindrical gear special for extruder, which has the characteristics of large axial load capacity and compact structure. The tooth surfaces are carburized, quenched and ground, and the gear pair transmission accuracy is level 7.

3. VARIABLE SPEED

AC frequency inverter or DC regulator.

Brand: LCGK, ETD, PARKER, EURO, SIEMENS, MITUSHIBI.

4. TCU DEVICE

The equipment is equipped with a five-unit temperature controller, each unit can be independently controlled, respectively controlling the feeding section barrel, plasticizing section barrel and exhaust section barrel, extrusion section barrel, the temperature of the head and screw

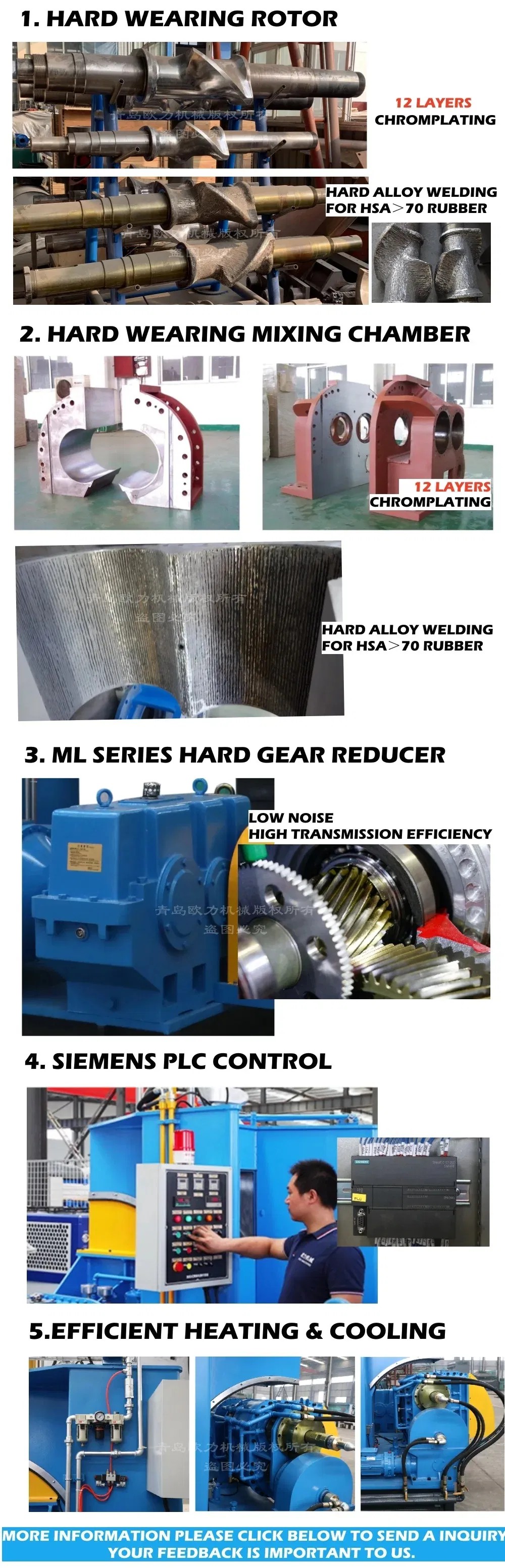

DETAILES OF PRODUCT

WHY CHOOSE US

faq

Q1: Where is your factory located?

A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.

Q2: Are you an integrated supplier for rubber&plastic machine ?

A2: Yes, we can provide the complete solution line to customer according to customer's requirement.

Q3: How about the quality control in your factory?

A3: OULI has the SOP (Standard Operation Procedure) and all the

production step must follow up this SOP. Every machine needs at least

automatic running over 72 hours and must be inspected carefully before shipment.

Q4: Will you offer the pre-sales service?

A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.

Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?

A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
