PRODUCT DESCRIPTION

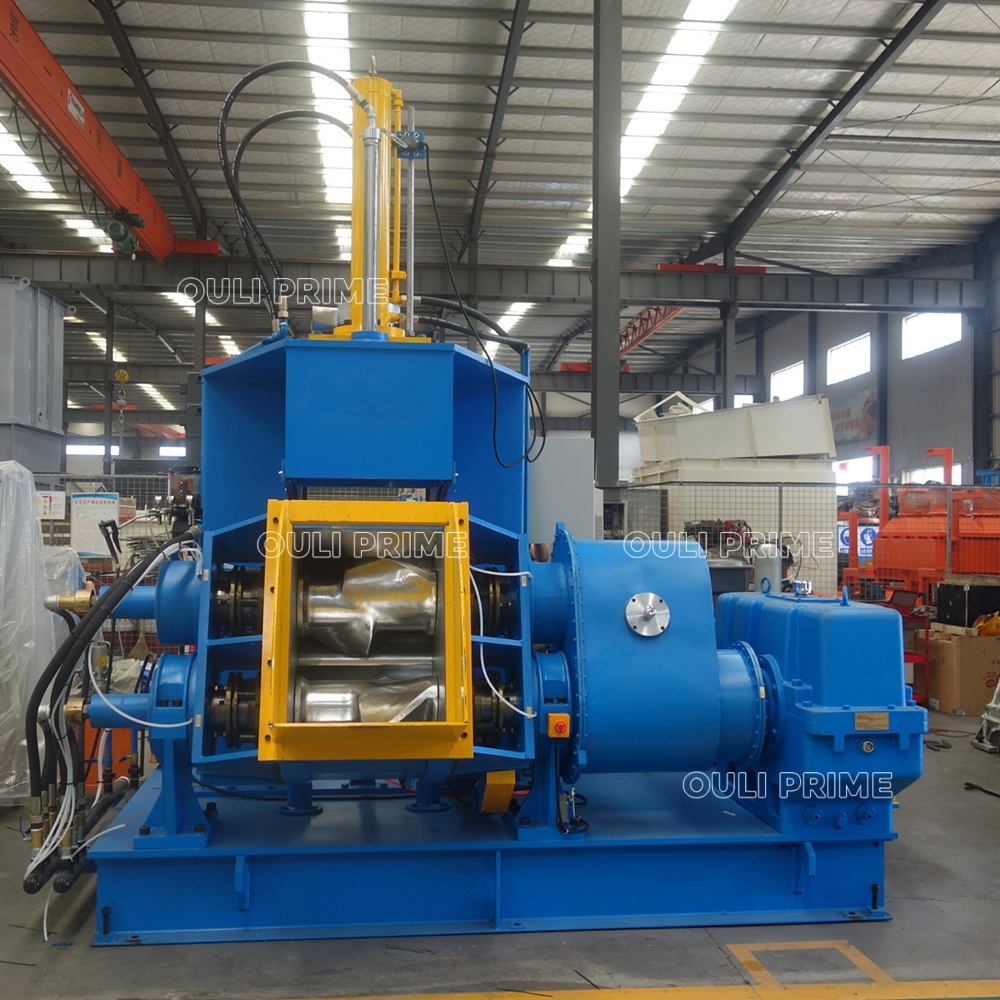

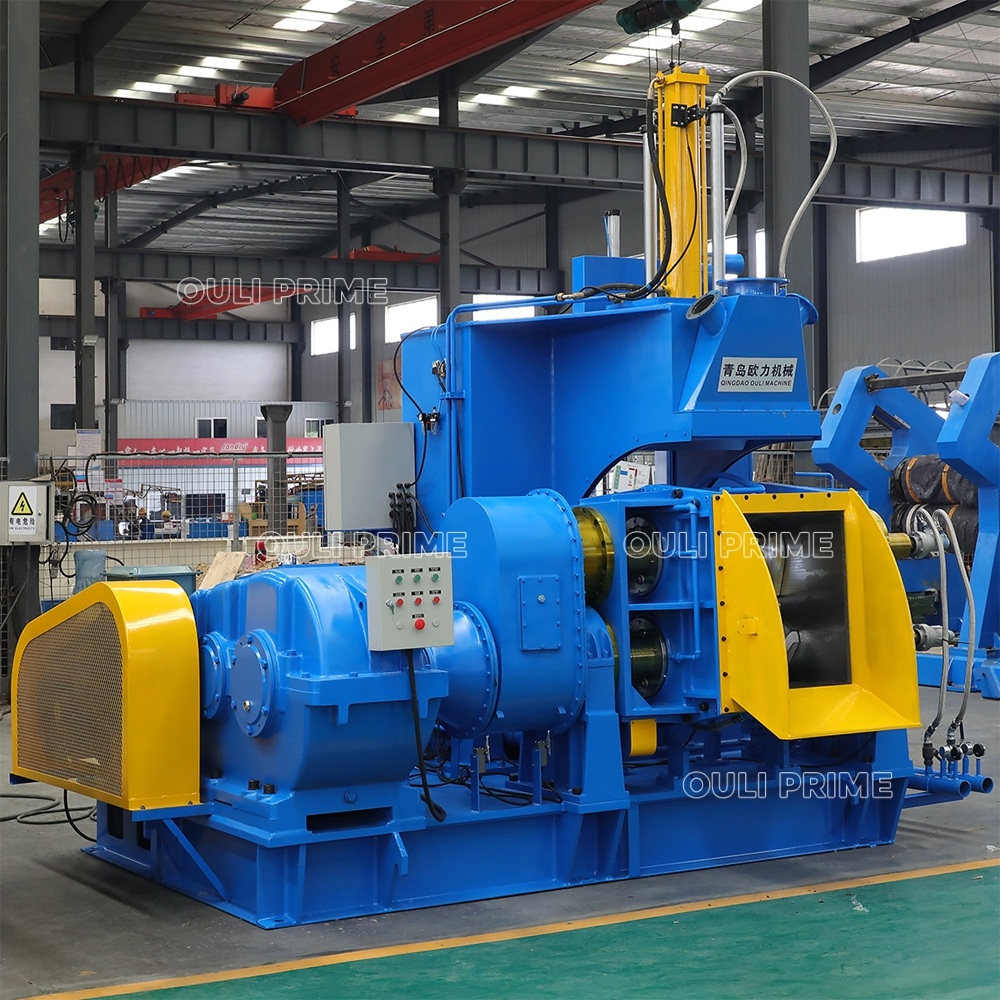

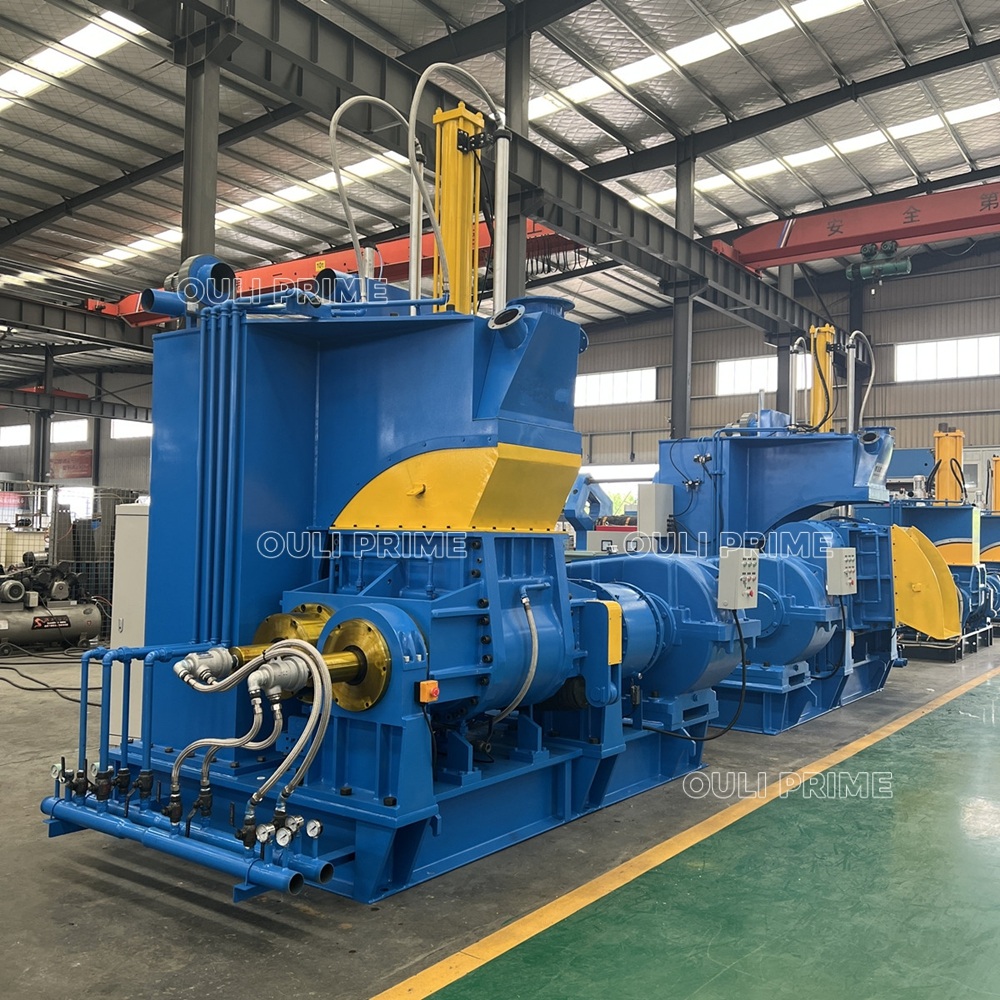

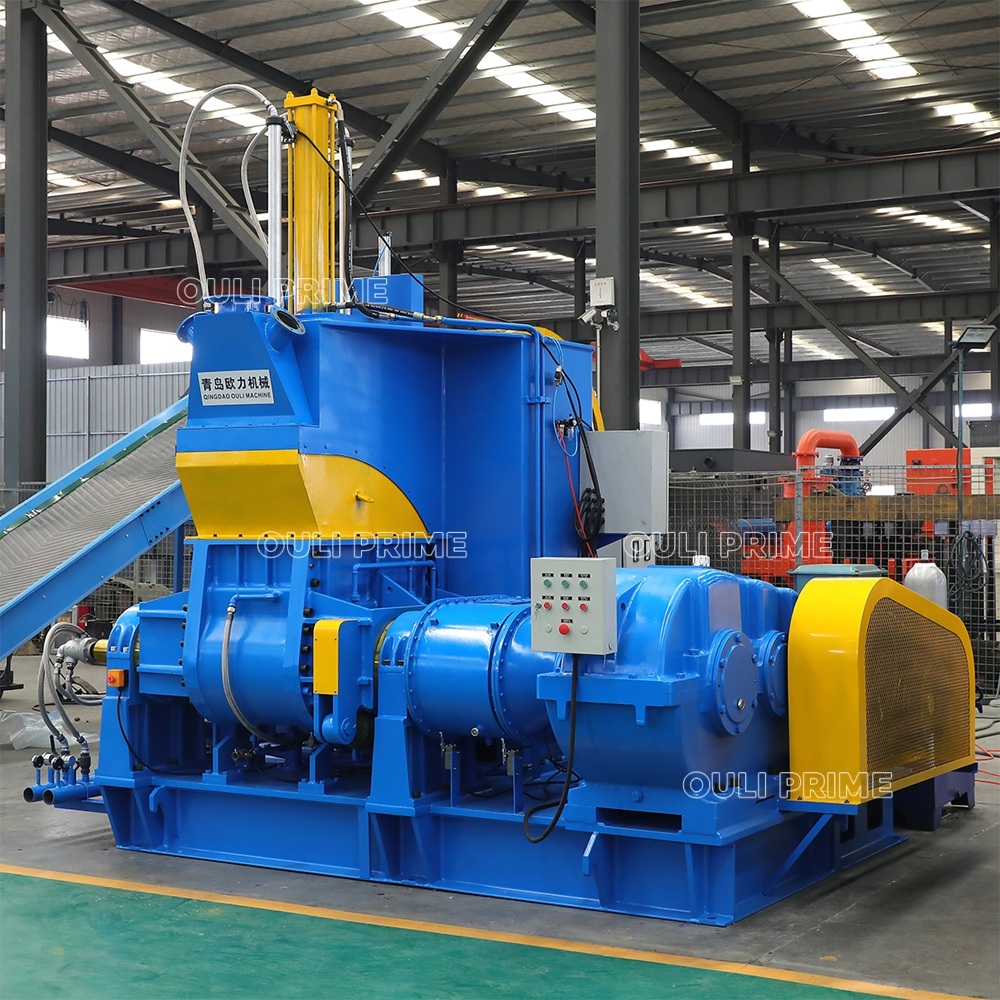

The rubber kneader machine is a core equipment for efficient mixing in modern rubber industry. Its key working components are two specially shaped rotors in a closed mixing chamber. Under high pressure (applied by the top plug), the rubber compound and additives are subjected to intense shearing, extrusion, folding and stirring, thus achieving uniform and high-quality mixing in a very short time.
The entire process takes place in a closed system, featuring high production efficiency, excellent mixing quality, high degree of automation, minimal dust emission and safe operation. It is the preferred equipment for large-scale industrial continuous production. It is usually used as the preceding process of the open mill, discharging the mixed rubber compound onto the open mill for sheeting or cooling.
TECHNICAL PARAMETER
ADVANTAGE AND MAIN FEATURE
1.Rotor: Rotor shaft material 42CRMO with hardness HRC58-62.
Blade material is ZG-45 with chrome-plating, hardness up to HRC50.Also have welded alloy rotors as option.
2.Mixing chamber /Top ram: Medium-carbon steel welding with chrome-plated 12-18 layers, hardness up to HRC50.
3.Ratio gear: 42CRMO cast alloy steel, forged parts with quenching and tempering treatment,high-frequency quenching, hardness HRC58-62, Low noise, wear -resistant, longer use life.
4.Gear box (reducer): Adopt hard tooth surface reducer, with strong carrying capacity, low noise, smooth running,high transmission efficiency and long service life.
5.Sealing system: High technology sealing system, no powder leak, easy to change.
6.PLC control system: All with Siemens PLC control system for automated and efficient mixing.

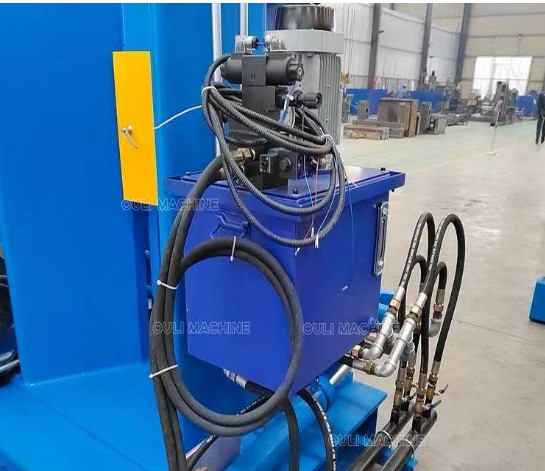

7.About mxing chamber , standard open type is by hydraulic , we also have motorized as optional.
8.Heating and cooling : Machine with water cooling system for mixing chamber , rotary, top ram .
9.Heating method: we can design it will electric ,steam or oil for heating , especially for mixing plastic PE.
DETAILES OF PRODUCT

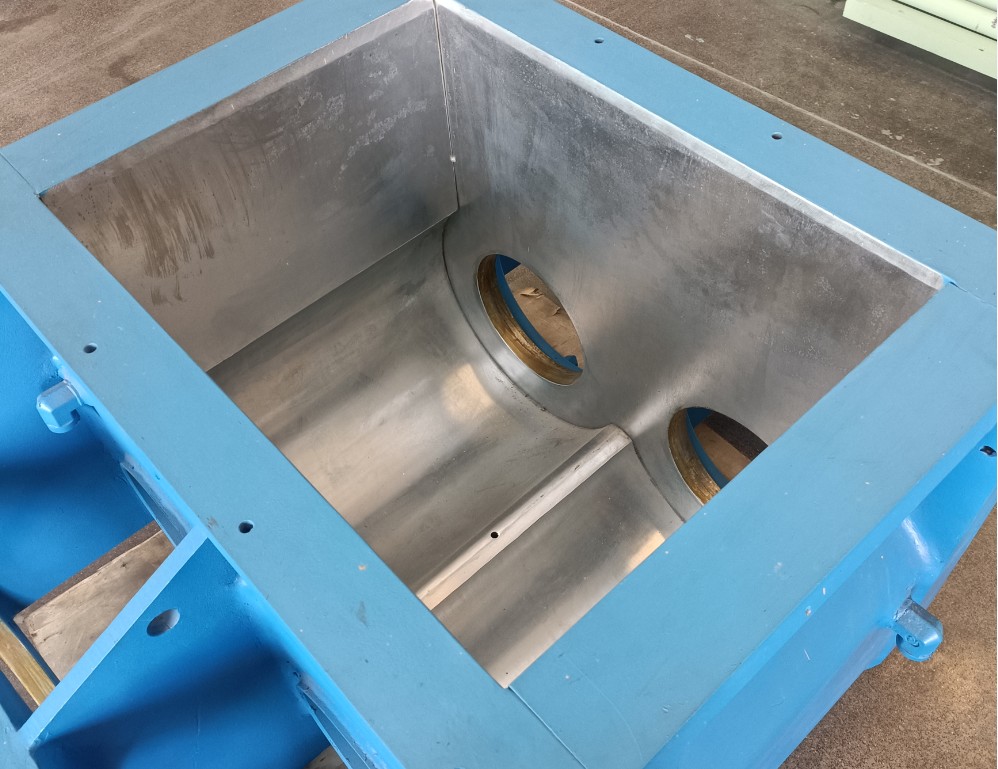

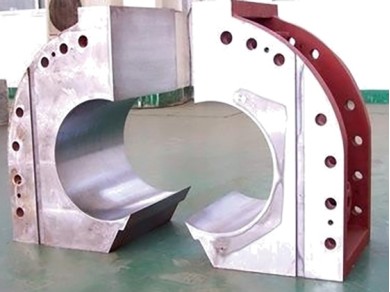

Mixing chamber
Pneumatic type rubber kneader machine (internal mixer) consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.

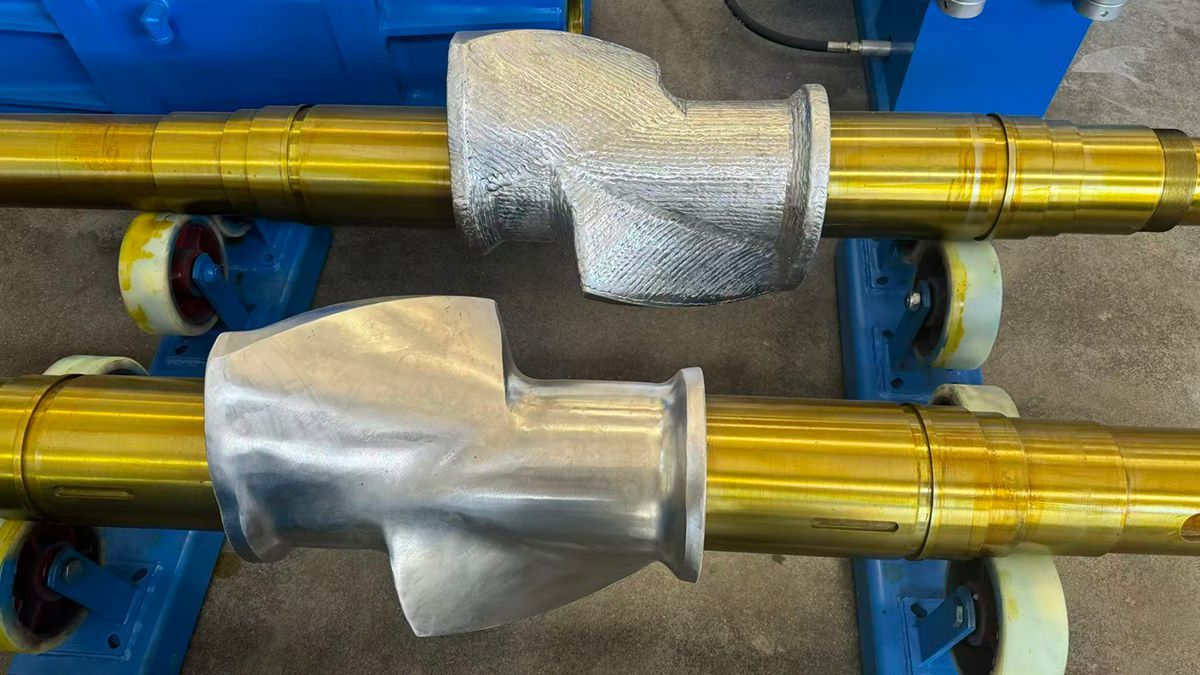

Rotor
It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage.
The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding,
then plating with hard chrome and polishing.

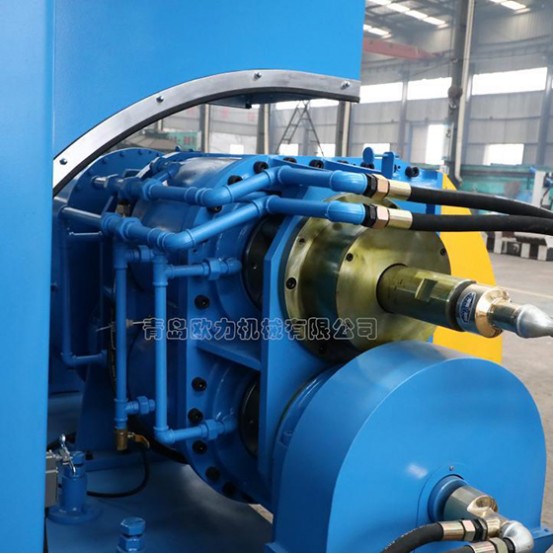

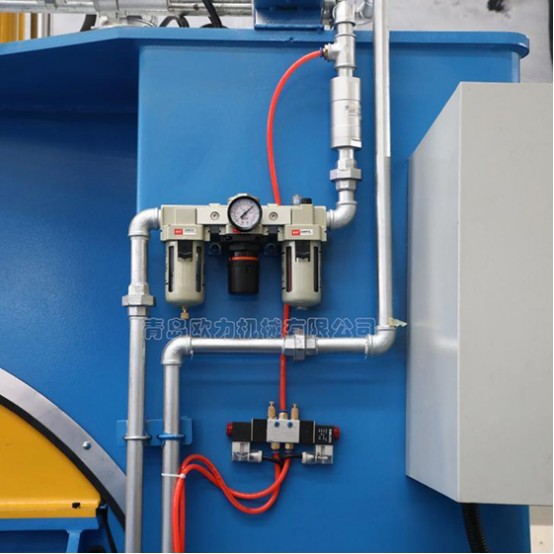

Cooling/heating system
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.

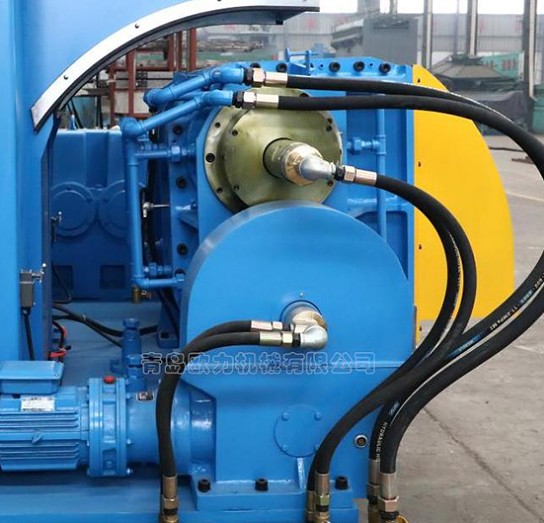

Tilting system
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc.. It is able to actuate the mixing chamber tilting by 140° around the front rotors.
Electric control system
Imported PLC device and electric control components which are all imported products or imported technology products are adopted
in the electric control system as to raise control reliability.
WHY CHOOSE US
faq
Q1: Where is your factory located?
A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
