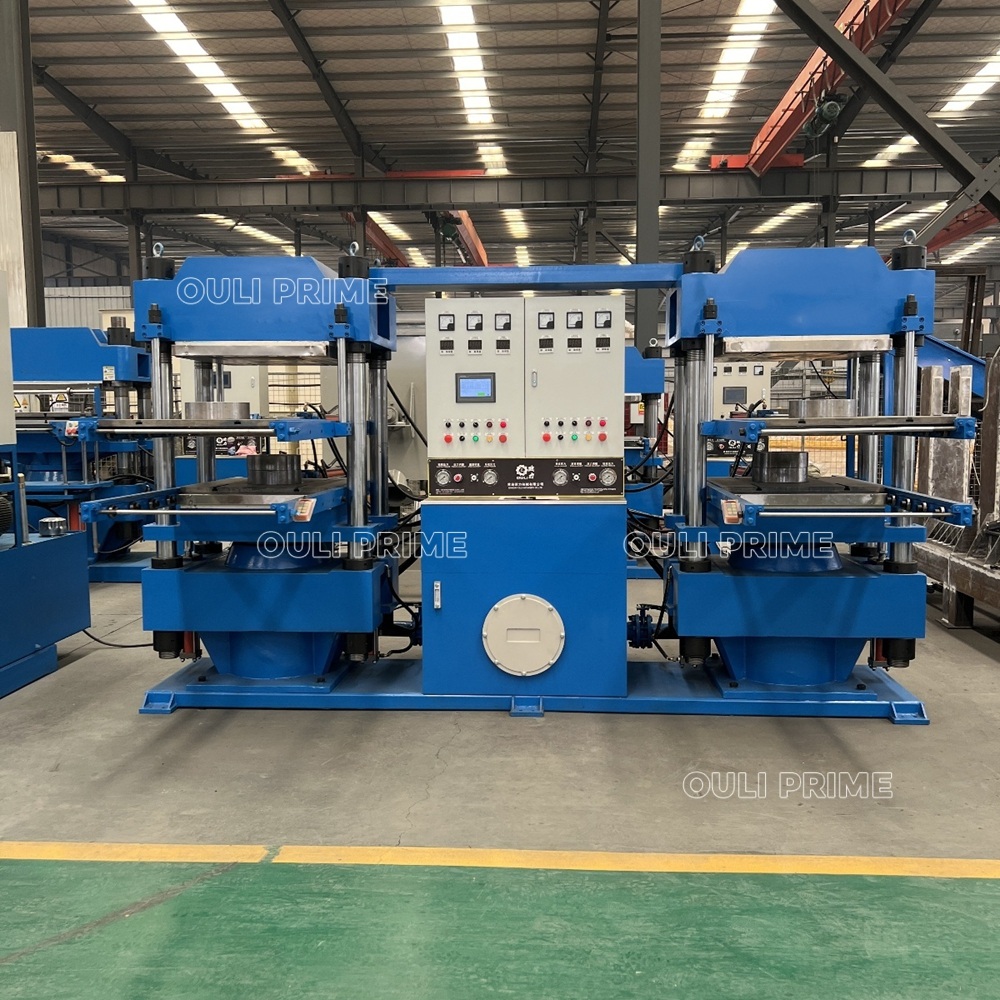

1.Automatic control: The rubber press has automatic up and down, automatic exhausting, automatic pressure, pre-heating, automatic constant temperature, press timing, time alarm and other functions, and can realize manual and automatic mode switching.

2.Column: Made of medium-carbon quenched and tempered steel with a hard chrome-plated shaft core after machining, surface hardness HRC 55-58.

3.Upper seat, mid-seat, bottom seat (oil cylinder): adopt SOLIDWORKS auxiliary mechanical visual design and QT-500 Ductile iron integral casting by aging passivation treatment ,high strength and high toughness, and tensile strength: 50kgf/mm.

4.Plunger: Made of LG-P cold hard alloy material. High surface hardness, not easy to wear, The depth of the cold and hard layer is 15-20mm, and the hardness HRC60-70 degrees,improves service life of the plunger.

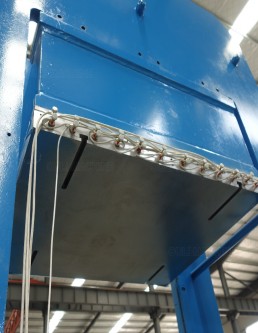

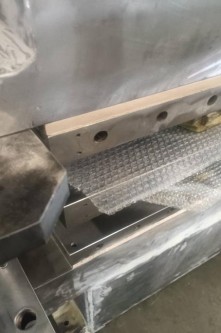

5.The heating plate and support plate are precision-ground from 45# steel and undergo nitriding treatment, delivering high strength and exceptional wear resistance. T-slots can be machined upon customer request.

6. Push and pull railway: Constructed from S45# steel, utilizing a lead screw and linear guide rail structure with integrated bearing design. This ensures stable die movement and extended wear resistance.

7.Sealing: The oil cylinder sealing adopt newest design high-tech sealing system, oil-resistant, aging-resistant, and wear-resistant; It features a four-stage sealing structure, ensuring excellent sealing performance, preventing oil leakage and pressure loss.

8.Hydraulic system: Featuring the Taiwanese Victory brand, it offers easy purchase and replacement, with a well-designed layout that facilitates maintenance and servicing.

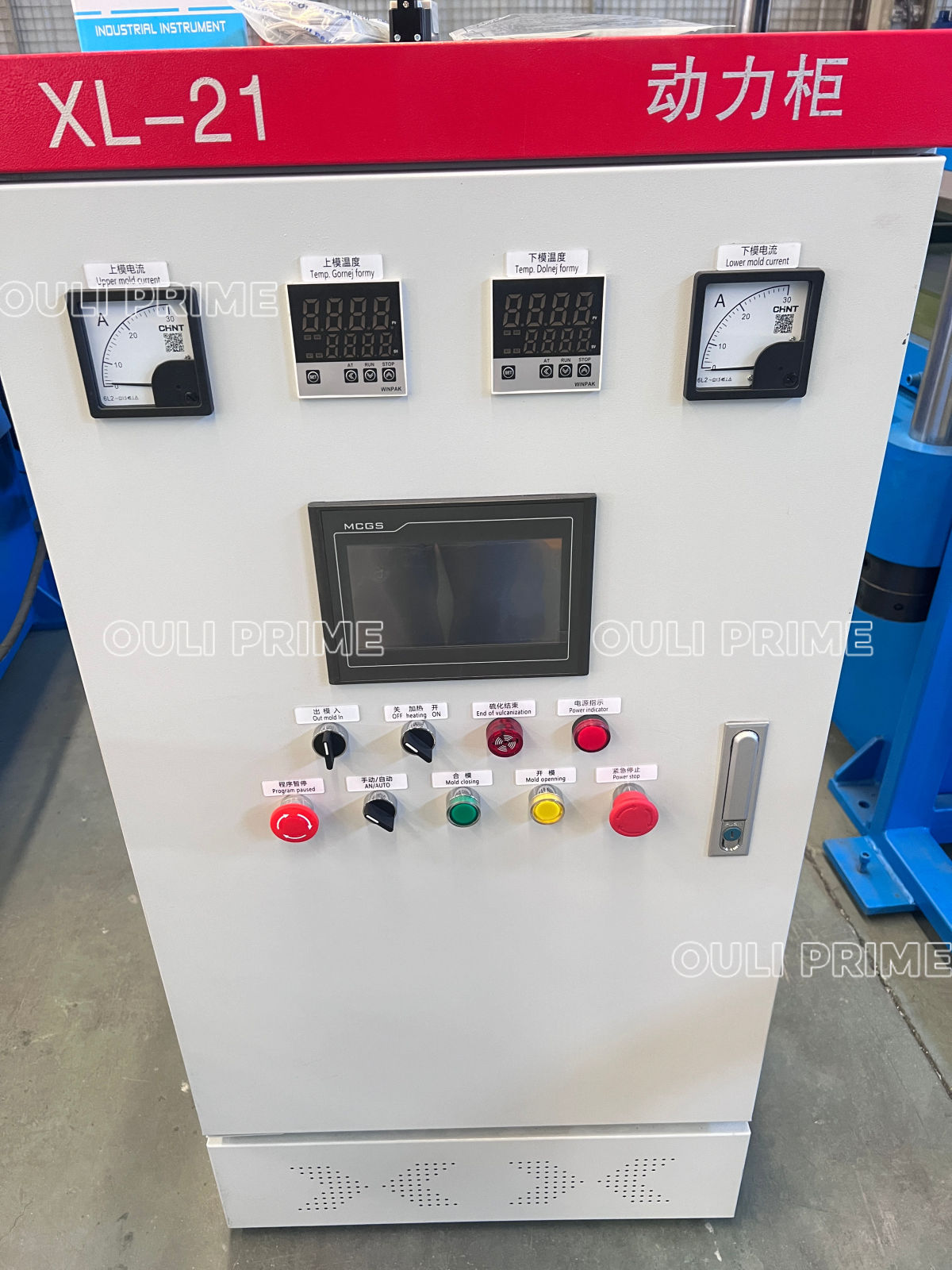

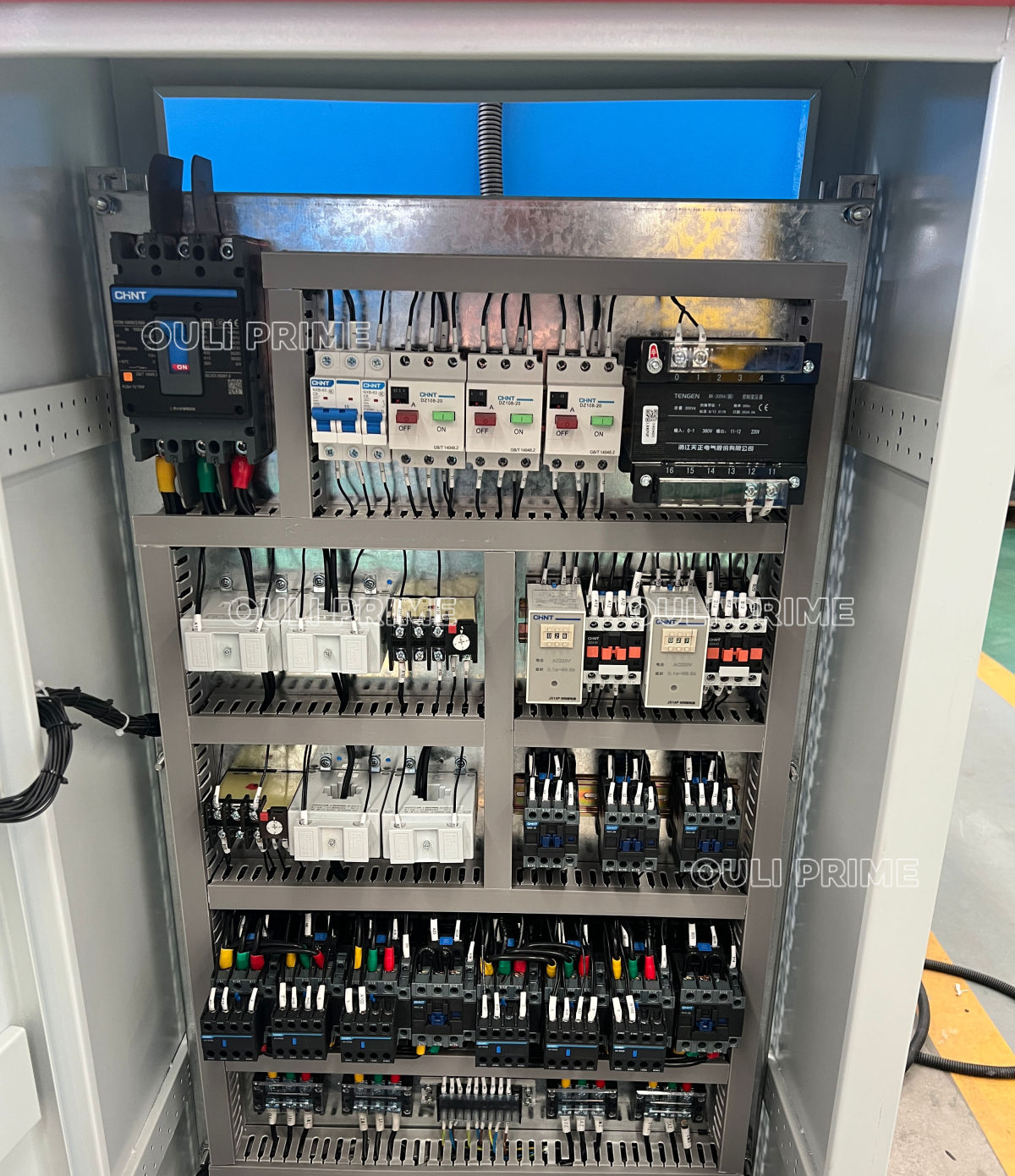

9.Electrical System: The primary PLC electrical components utilize internationally renowned Mitsubishi brand from Japan. These components feature compact size, robust construction, fatigue resistance, and are designed for continuous high-intensity operation.
