It is widely used in fields such as thermosetting plastics, foam, resins, Bakelite, metal sheets, and building materials.
PRODUCT DESCRIPTION
This series plate vulcanizing machine special-purpose takes shape the equipment for the rubber profession.Heats up the way to uses the electric heating(steam or oil heats up),the power uses the height combination to pump for the oil way, reduces the equipment the power loss.
The electrical control uses the advanced PLC control technology,may realize automatic controls when, automatically operates the mold,is automatic warm controls and so on the craft.And may realize automatically deflates. Thus guarantee product quality and high efficiency.
May have custom-made each kind of four columns,the frame type, the work table emigration-ton type,the work table emigration type in addition according to the customer product technological requirement and so on the many kinds of plates vulcanizing machine.
Main uses:
The Curing Press mainly works for the clampdown of rubber, which can be used as normal hydraulic machine.

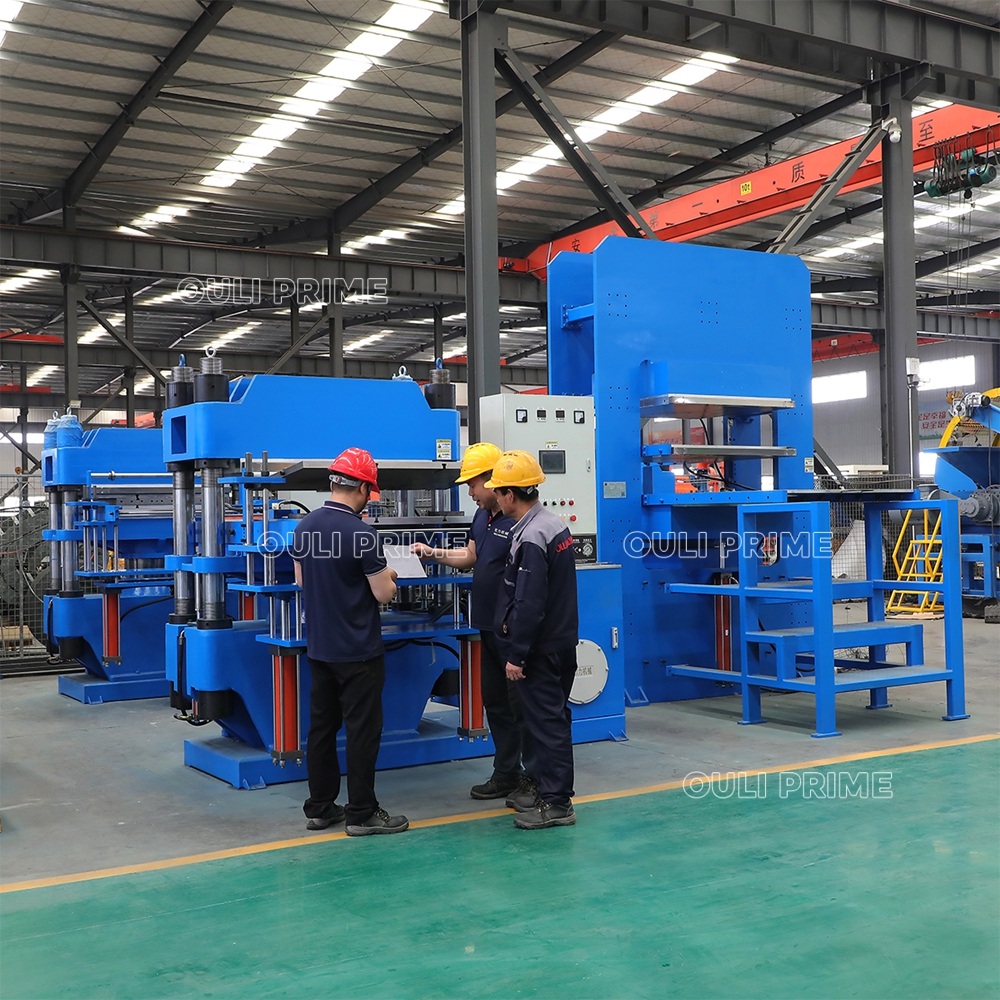

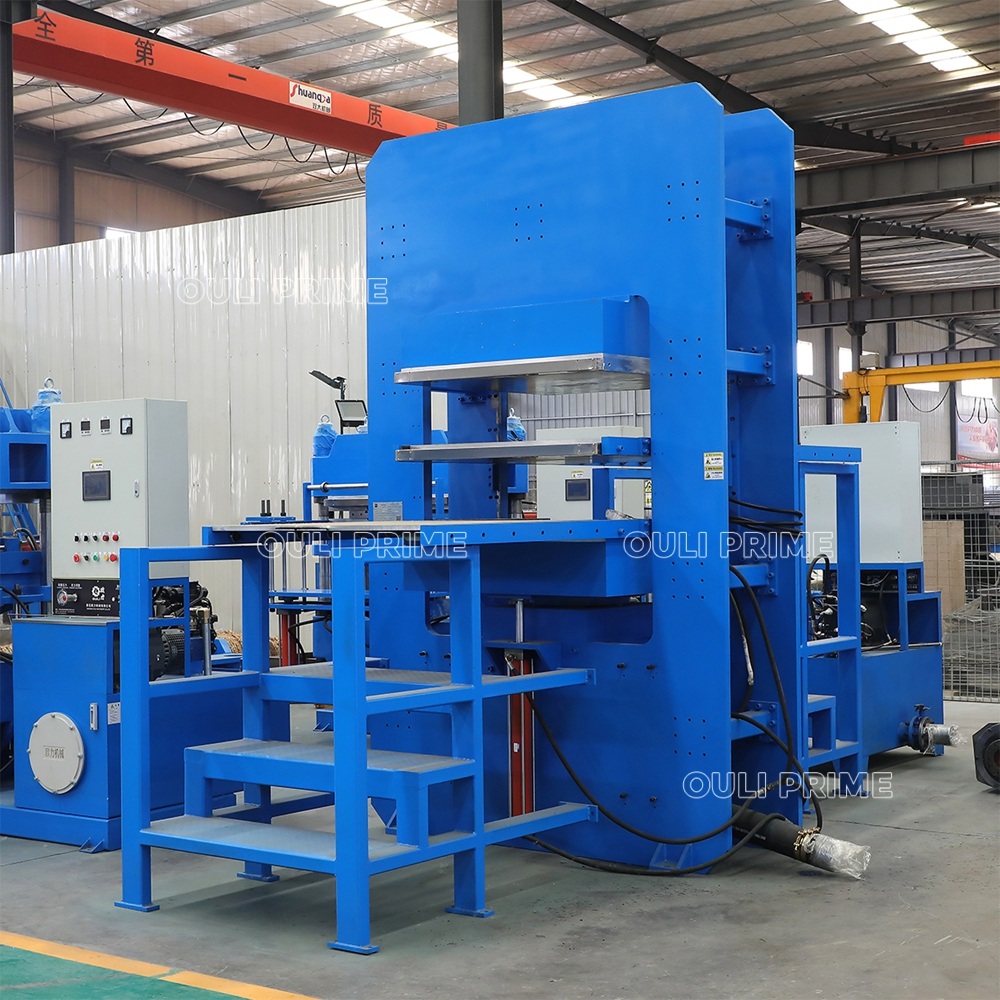

We have both column and frame structure.
TECHNICAL PARAMETER
ADVANTAGE AND MAIN FEATURE
1.Automatic control: The rubber press has automatic up and down, automatic exhausting, automatic pressure, pre-heating, automatic constant temperature, press timing, time alarm and other functions, and can realize manual and automatic mode switching.
2. Frame: Frame plates manufactured from Q235A high-quality carbon steel, cut as a single piece and subjected to stress-relieving annealing to eliminate cutting stresses. Frame plate strength (thickness and flange width) is designed using SOLIDWORKS 3D mechanical simulation and visualization, ensuring a safety factor exceeding 2.5 and preventing deformation.
3.Upper seat, mid-seat, bottom seat (oil cylinder): adopt SOLIDWORKS auxiliary mechanical visual design and QT-500 Ductile iron integral casting by aging passivation treatment ,high strength and high toughness, and tensile strength: 50kgf/mm.
4.Plunger: Made of LG-P cold hard alloy material. High surface hardness, not easy to wear, The depth of the cold and hard layer is 15-20mm, and the hardness HRC60-70 degrees,improves service life of the plunger.
5.The heating plate and support plate are precision-ground from 45# steel and undergo nitriding treatment, delivering high strength and exceptional wear resistance. T-slots can be machined upon customer request.
6.Sealing: The oil cylinder sealing adopt newest design high-tech sealing system, oil-resistant, aging-resistant, and wear-resistant; It features a four-stage sealing structure, ensuring excellent sealing performance, preventing oil leakage and pressure loss.
7. Hydraulic system: The main hydraulic parts adopt JAPAN YUKEN brand, easy to buy and change, reasonable layout, easy to maintain.
DETAILES OF PRODUCT

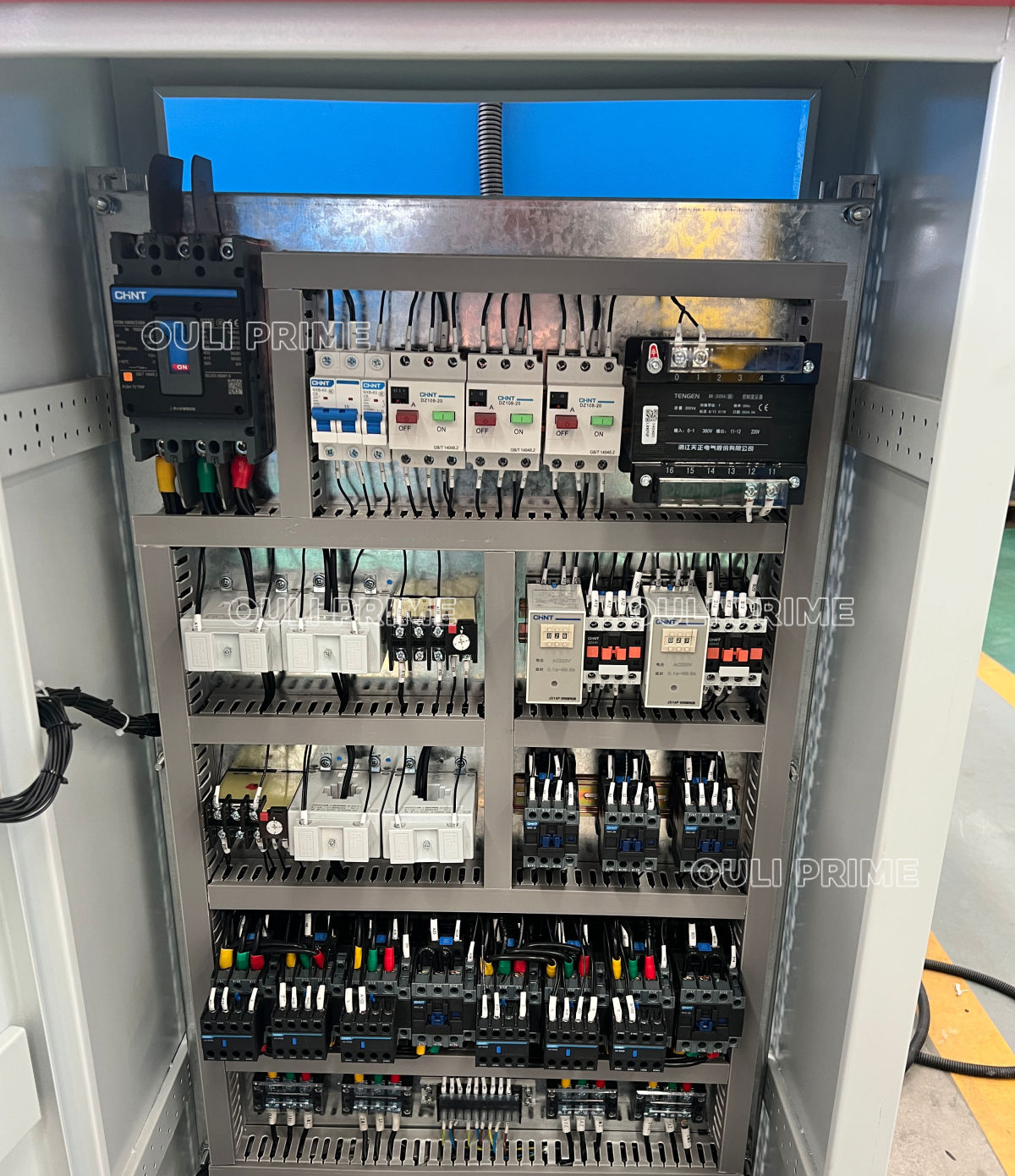

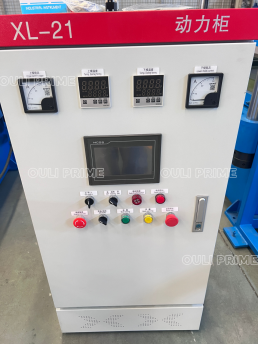

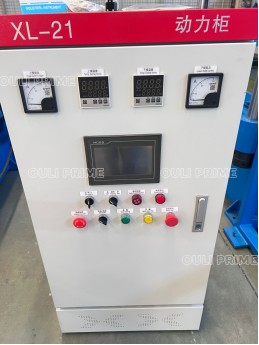

1. MITSUBISHI PLC CONTROL
The electrical control part of this machine adopts imported PLC control.The use of programmable Logic Controller can make maintenance and operation safer and easier.Has automatic up, automatic down, automatic exhaust, automatic pressure, pre -heating, automatic constant temperature, press timing, time alarm and other functions, and can realize manual and automatic mode switching.
2. YUKEN HYDRAULIC SYSTEM
The hydraulic system is designed according to the technological process and action requirement. The main hydraulic parts are Yuken brand to guarantee the quality and reliability of operating.
3.HSD75 HARDNESS PISTON
5Okgf /mm EXTENSION CYLINDER
Hydraulic cylinder is made of ZG270-500
Plunger: The plunger is made of LG-P chilled alloy. This material has high surface hardness and is not easy to wear.
The depth of the chilled layer is 8-15mm and the hardness is HSD75 degrees,which improves the overall service life of the plunger.
The double-sealing ring and the dust-proof ring structure can guarantee a long life time.

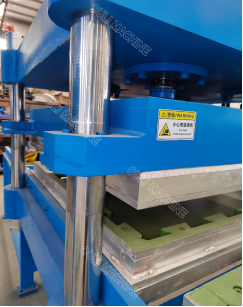

4.0.05mm-0.08mm PARALLELISM TOLARANCE HEATING PLATE
This high precision ensures excellent flatness and uniform pressure distribution.
It greatly improves product quality and reduces defective rates effectively.
5.>400Mpa STRENGTH EXTENSION WELDING WORKPIECE
Excellent tensile performance ensures strong and stable welding joints.
It effectively improves workpiece durability and service life.

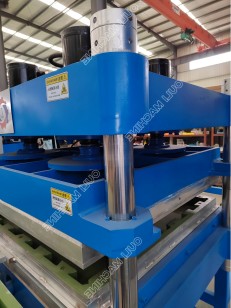

6.4OCR COLUMN
The machine columns are made of high-quality 40Cr alloy steel.
It features high strength, good toughness and excellent wear resistance.
This ensures stable operation and strong resistance to deformation.
WHY CHOOSE US
faq
Q1: Where is your factory located?
A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
Q5:What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines.
