Our reclaimed rubber refining mill machine is specifically designed for efficient and thorough refining of reclaimed rubber. It can process various rubber materials, including natural rubber, synthetic rubber, and other rubber compounds. With its advanced design and robust construction, our machine ensures high-quality output and reliable performance, meeting the stringent requirements of rubber refining operations.
PRODUCT DESCRIPTION

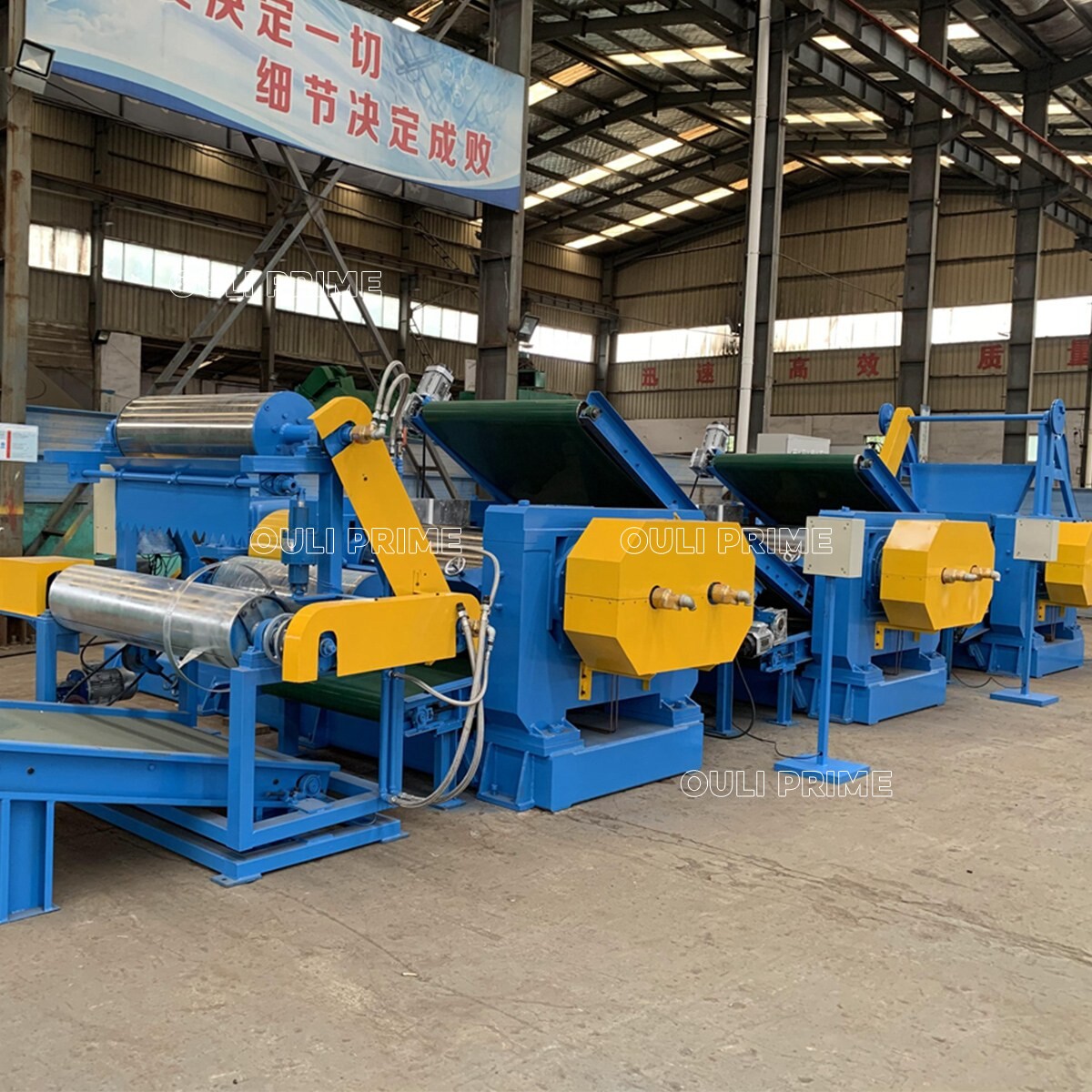

Reclaimed rubber refining mill is used to process waste tire or waste rubber to make reclaimed rubber strips.
It turns waste material into new material. Its main function is to refine rubber powder and remove impurities and make t into reclaimed rubber.
Reclaimed rubber, could replace a part of unvulcanized rubber to make new rubber product or 100% reclaimed rubber to make some low grade rubber products. It is widely used in rubber shoe sole, tire protector, rubber plates, rubber pedal slipcover, rubber tube and conveyor belt and water-proof materials and fire insulation,etc.
TECHNICAL PARAMETER
ADVANTAGE AND MAIN FEATURE
1.Roller: Standard with hollow structure, made of LTG-H chrome-molybdenum alloy cold cast iron, centrifugal casting, the surface hardness of the cold hard layer can reach 72-75HSD, the depth of the cold hard layer is 15 ~ 20mm;
For some special materials and processes, we offer chrome-plated rollers, mirror-finished rollers, and drilled rollers as options.
2.Rolling bearing: Automatic aligning roller bearing, High carrying capacity, energy saving more than 5% than the traditional nylon bush .
3.Bearing lubrication: automatic dry oil lubrication, can set the lubrication time and lubrication frequency.
Each pipe is equipped with a pressure gauge to prevent pipe clogging, improper lubrication caused by bearing damage
4.Nip adjustment device: Standard by manual ratchet wrench. And option with electric or hydraulic roller nip adjustment system.
5.Ratio gear: alloy steel (ZG-45) casting, after grinding, high-frequency quenching, the hardness is HRC58-62, low noise ,wear-resisting, long service life .
6.Gear box (reducer): hard tooth surface reducer, adopt top brand in china, with four-axis three-stage transmission, the safety factor is above 2.0.
7.The frame and base: welding and annealed, processed by precision machine. Steel thickness≥40mm.
DETAILES OF PRODUCT
We make our use safe of rubber mixing mill
Brake time:1/4 circle,
Brake power: electric-hydraulic brake,
Brake type : bar brake/chest brake/stop button/foot brake
75HSD Hardness Roll of Open Mixing Mill
The roller is made of LTG-H chromium-molybdenum or low nickel-chromium ally chilled cast iron, centrifugally cast, the hardness of the chilled layer on the surface of the roller can reach 75HSD and the depth of the chilled layer is 15-20mm.
Roll bearing type : Automatic-aligning ball bearing
Brand :ZWZ, (optional FAG, SKF)
Roller bearing lubrication : by grease
Automatic Lubrication of Bearing of Two Roll Mil
Hard Gear Reducer
WHY CHOOSE US
faq
Q1: Where is your factory located?
A1: QINGDAO OULI MACHINE CO., LTD. is located at Wangjialou Industrial Zone, Huangdao District, Qingdao City, Shandong Province, China.
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least
automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
